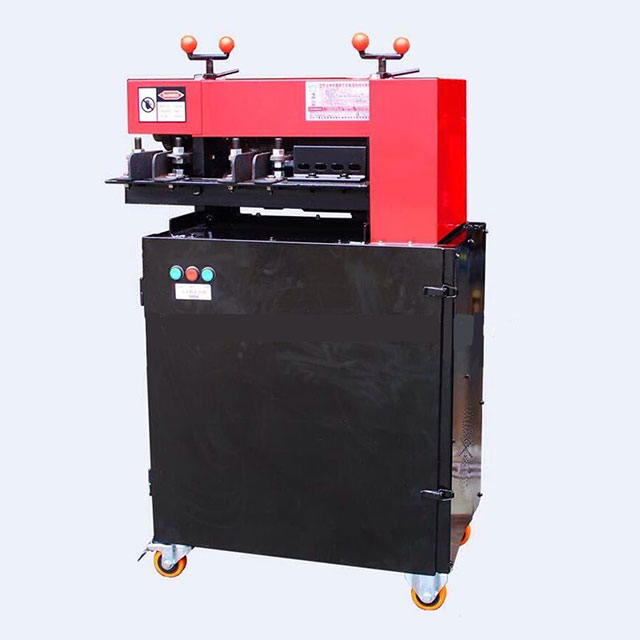

KLS-918B
Application:
Movable wire stripping machines are widely used alone or together with the wire granulator machine. Those wire/cable which can't feed directly in the granulator machine can be easily and efficiently peeled. The processing range (cable diameter 1mm-120mm) is amazing. More labor-saving and less energy consumption. We have various and customized sizes of wire peeling stripping machine for different cables processing.
Advantages:
1. Both manually and electricity operated. Pushing wire automatically,just need hold by labors.
2. Adjustable gears to suit different diameter wire.
3. Affordable small cost.
4. Wheels available,easy to move.
5. Customized model also acceptable for us.
Models for reference:
Model | KLS-918A | KLS-918B | KLS-918C | KLS-918D | KLS-918E |
Cable input limitation | 1-40mm | 1-40mm | 1.5-98mm | 6-70mm | 10-120mm |
Output | 20-100kg/h | 80-200kg/h | 50-500kg/h | 10-70kg/h | 20-100kg/h |
Power | 2.2kw | 3-4kw | 3-4kw | 1.5kw | 3kw |
Machine weight | 110kg | 196kg | 240kg | 55kg | 110kg |
Overall size | 70*55*84cm | 70*55*115cm | 77*55*118cm | 63*37*48cm | 67*58*110cm |
